HabiTec S80 and HabiTec S90 Door and Window System

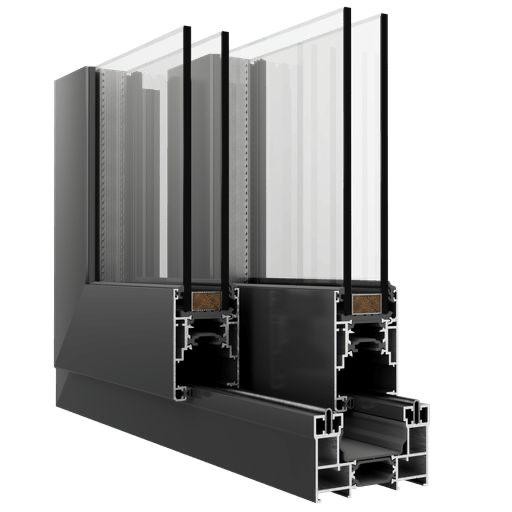

The HabiTec S80 series is a thermally insulated sliding system made with 20mm polyamide bars on the track and 24mm polyamide bars on the sash. Air and water sealing is ensured by a brush seal and internal and external gaskets, as well as U-shaped gaskets on the sashes. The range of profiles allows for the construction of various types of window frames, such as two-, three-, and four-sash windows and French doors, with fixed or tilt-and-turn transoms.

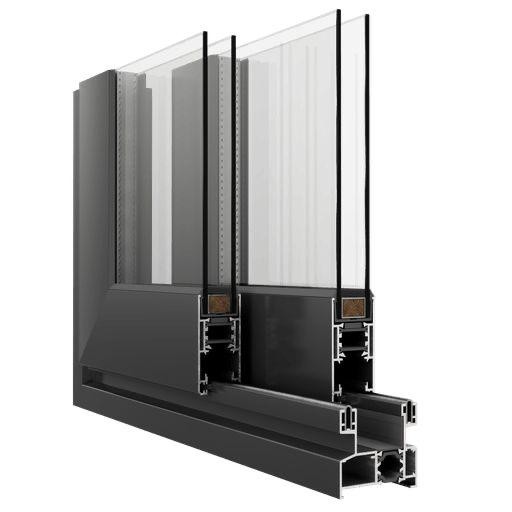

The HabiTec S80 series is a thermally insulated sliding system made with 20mm polyamide bars on the track and 32mm polyamide bars on the sash and 34mm on the frame. Air and water sealing is ensured by a brush seal on the sashes. The range of profiles allows for the construction of various types of window frames, such as two-, three-, and four-sash windows and French doors, with fixed or tilt-and-turn transoms.

The thermal break is achieved using 24/32 mm polyamide bars (low lambda) assembled with EN AW 6060 extruded aluminum alloy through mechanical lamination with a creep resistance of at least 2.4 N/mm.
